Foam is everywhere—inside sofas, beneath carpet, even lining bike helmets—yet few people know how it’s made in mile-long “bread loaves” before being sliced like cake. If you’re wrestling with rising material costs, slow batch turnarounds, or mismatched densities, you’ve likely asked, “Could a continuous foam machine fix this?” Knowing the answer helps you reduce waste, hit strict specs, and keep customers happy.

Success Box: A continuous foam machine delivers (1) nonstop production, (2) tighter density control, (3) lower chemical loss, (4) faster curing, and (5) safer, cleaner floors—all at once.

In this guide we’ll unpack the technology, list real-world payoffs, share design tips, and flag pitfalls so—by the last line—you’ll feel ready to spec or upgrade your own continuous foam machine.

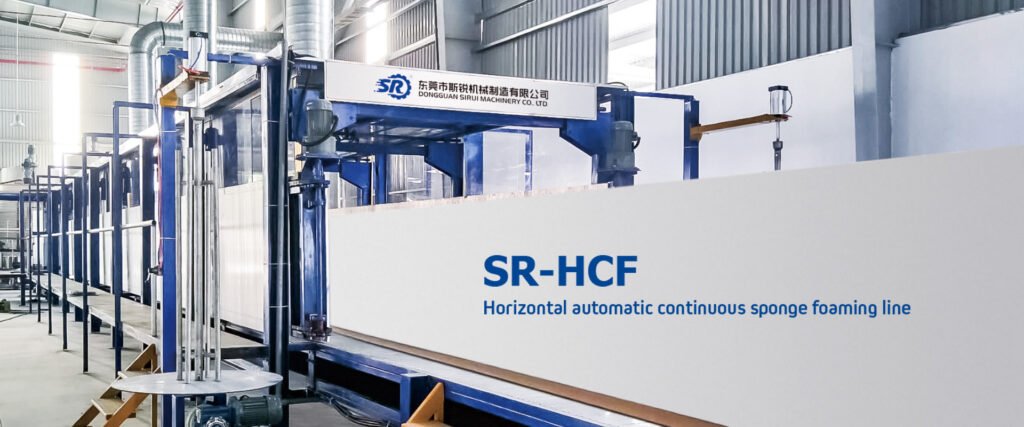

Continuous Foaming Machines: The Engine Behind Modern Comfort

A continuous foam machine works like a rolling bakery. Liquid polyol and isocyanate stream into a mix head, whipped with air, shot onto a slow-moving conveyor, and rise into a twenty-meter-long bun. Because the line never stops, you gain uniform cell structure, fewer start-up scraps, and 30 % more yield per shift compared with manual box foaming. The secret lies in precise pumps, inline sensors, and servo-controlled knives that marry chemistry with mechanics.

Raw Material Metering

Accurate pumps are the heart of every continuous foam machine. Magnetic-drive gear pumps meter each component within ±0.2 %. Flowmeters report in real time, letting the PLC tweak speeds if temperature drift bumps viscosity. Keeping ratios perfect prevents voids, discoloration, or costly “smoking” reactions that trash an entire loaf.

Mixing And Foaming Reaction

Inside the mix head, high-shear blades combine liquids, catalysts, and blowing agents in milliseconds. Turbulence seeds billions of microbubbles; carbon dioxide inflates them as polymer chains link. Correct shear ensures bubbles stay tiny, giving softer hand-feel and better rebound—key for premium mattresses and sound-dampening panels.

Cutting, Curing, And Downstream Handling

An oscillating slit-knife scores the base so the bun slides off the conveyor without tearing. After six hours of ambient curing, computer-guided block cutters slice sheets to any thickness. Modern plants add robotic stackers that wrap, label, and palletize—turning raw drums into ready-to-ship foam in a single hall.

The Science Of Bubbles And Density Control

Foam performance starts at the bubble. Cell size, wall thickness, and distribution dictate firmness, airflow, and tensile strength. A continuous foam machine maintains laminar pour flow, minimizing turbulence that would create “champagne-bubble” voids. Inline infrared cameras read temperature bands; if exotherm rises too high, the PLC nudges water content down by 0.05  %.

Info: Every 1 °C temperature spike can raise finished density by 2  kg/m³—monitor closely on humid days.

Key Components Of A Continuous Foam Machine

The line looks simple, yet each module safeguards quality.

Quick Tip: Keep spare seals on-hand; a leaky gear pump can skew ratios before alarms trigger.

Productivity Gains And Cost Savings

Switching from batch boxes to a continuous foam machine often doubles daily output. Labor drops because one operator can watch the console while forklifts handle cured blocks. Chemical savings average 6–8 % thanks to reusable end-off cuts and lower isocyanate blow-off. ROI studies show payback in eighteen months for mid-size upholstery plants.

Suggestion: Run density trials at shift change; dialing in parameters before full-speed cuts scrap in half.

Quality Control From Formulation To Finished Block

Quality is baked in, not inspected out. PLC logs of flow rates, temperature, and conveyor speed tie to each bun’s barcode. Labs slice 50  mm cubes every five meters, compress them 40  %, and verify rebound within 90 – 95   %. Deviations trigger auto-emails to maintenance. This closed-loop system makes the continuous foam machine a data goldmine for ISO audits.

Danger: Never re-blend off-ratio scrap; small chemical imbalances can snowball into flaming buns.

Environmental And Safety Advantages

Older batch foaming splashes chemicals, vents isocyanate fumes, and fills dumpsters with uneven blocks. A continuous foam machine contains liquids in closed pipes, exhausts through carbon filters, and yields near-zero trim waste. Energy use drops because the exothermic reaction pre-warms the factory in winter, cutting heater loads.

Fact: Plants switching to continuous lines report 40 % lower OSHA recordables linked to chemical handling.

Applications In Bedding And Furniture

Mattress makers crave endless slabs that slice into queen and king blanks with minimal seam loss. Sofa builders love the machine’s ability to tweak ILD (Indentation Load Deflection) by one-digit increments, matching seat and back cushions from the same pour. With continuous foam machine output topping 300  kg/min, even mega retailers stay stocked during holiday surges.

Warnings: Store cured blocks 48 hours before hot-wire profiling; trapped heat can warp templates.

Expanding Into Automotive And Packaging

Car seats, headliners, and door panels demand foams that pass 50,000-cycle fatigue tests. Continuous lines blend poly-ether recipes that shrug off humidity, beating batch PU, which can hydrolyze. Meanwhile, protective-packaging converters pour anti-static formulations nonstop, then die-cut inserts for electronics shipments—all on the same conveyor.

Troubleshooting Common Production Issues

Even the best continuous foam machine needs periodic TLC. If “smile-shaped” density dips appear, check fall-plate angle or pump cavitation. Horizontal cracks usually trace to cold ambient air; raise mix temperature 3 °C. Yellow streaks hint at catalyst over-dose—clean static mixers and recalibrate dosing.

Choosing The Right Continuous Foam Machine Supplier

Look for vendors with field technicians within a day’s travel. Ask for remote-dial-in diagnostics, spare-parts lead times, and training packages. A demo run using your chemicals proves conveyor coatings resist your formulation’s surfactants. Financing plans often bundle drums and paper rolls, smoothing cash flow while you ramp volumes.

Future Trends In Foam Manufacturing Technology

AI-driven vision systems now predict bun rise in real time, letting servos adjust side-wall height on the fly. Water-blown formulas cut HFCs, meeting climate rules without sacrificing feel. Modular continuous foam machine lines add digital twin models, so engineers tweak recipes virtually before risking a drop on the shop floor.

Conclusion

Switching to a continuous foam machine turns chemistry into a predictable, profitable science. You gain nonstop output, perfect density, leaner labor, greener floors, and a data trail auditors love—all while serving mattresses, car seats, or packaging inserts at record speed. In short, if foam is your business, a continuous foam machine is your best ally for growth.

FAQs

How Long Does Foam Need To Cure Before Cutting?

Most buns stabilize in 6–12 hours; dense formulations may need 24 hours.

Can A Continuous Line Change Density On The Fly?

Yes. Adjust pump ratios and airflow; new mix reaches the pour plate within minutes.

What Maintenance Does The Mix Head Need?

Daily solvent flush, weekly blade inspection, and quarterly seal replacement keep reactions even.

Is Water-Blown Foam Compatible With Continuous Machines?

Absolutely—software tweaks foaming height, and closed conveyors manage extra CO₂.

How Much Floor Space Is Required?

A mid-range line fits in 500 m², including mix room, conveyor, and curing racks.
