If you have ever lounged on a fluffy sofa or held a soft foam pillow, you could have wondered how producers make these cushioning materials. Many times, they convert liquid substances into thick, airy foam using foam making machine. But what exactly do these machines run on, and behind the scenes what is happening?

 Imagine entering a facility where two or more compounds pass through tubes, combine, and then miraculously expand into large foam blocks or exact custom forms. That’s essentially the process: controlled mixing, expansion, and curing. Although the concept sounds simple, the details matter greatly because foam’s final quality depends on precise chemical ratios, temperature settings, and mixing speeds. In this blog, we’ll break down every step of using a foam making machine.

Foam Making Machine: Understand the Basics

A foam making machine blends liquid chemicals—typically polyols and isocyanates—while introducing air or blowing agents. The mixture expands into foam, which solidifies and cures over time. Modern machines regulate temperature, speed, and chemical ratios for consistent results. Operators can tweak formulas to produce different densities and textures.

Chemical Components

A foam recipe involves a polyol blend, an isocyanate, a catalyst, and possibly flame retardants or colorants. Each ingredient plays a distinct role, from starting the chemical reaction to fine-tuning durability, flame resistance, and color.

Metering Pumps

Each chemical moves through a metering pump, ensuring correct volumes enter the mixing chamber. If pumps run unevenly, the foam’s final density may vary. Consistent pump performance is key to maintaining product uniformity from batch to batch.

Mixing Head

Within the mixing head, chemicals combine at high velocity. A swirling action or spinning agitator ensures everything blends thoroughly. The moment they meet, the reaction kicks off. By the time the mixture exits, it’s already starting to foam or expand.

Key Components Of A Foam Making Machine

A foam making machine usually includes reservoirs for liquid chemicals, a set of metering pumps, a mixing system, and sometimes a conveyor or mold system. Let’s look at each part briefly:

1. Chemical Tanks:

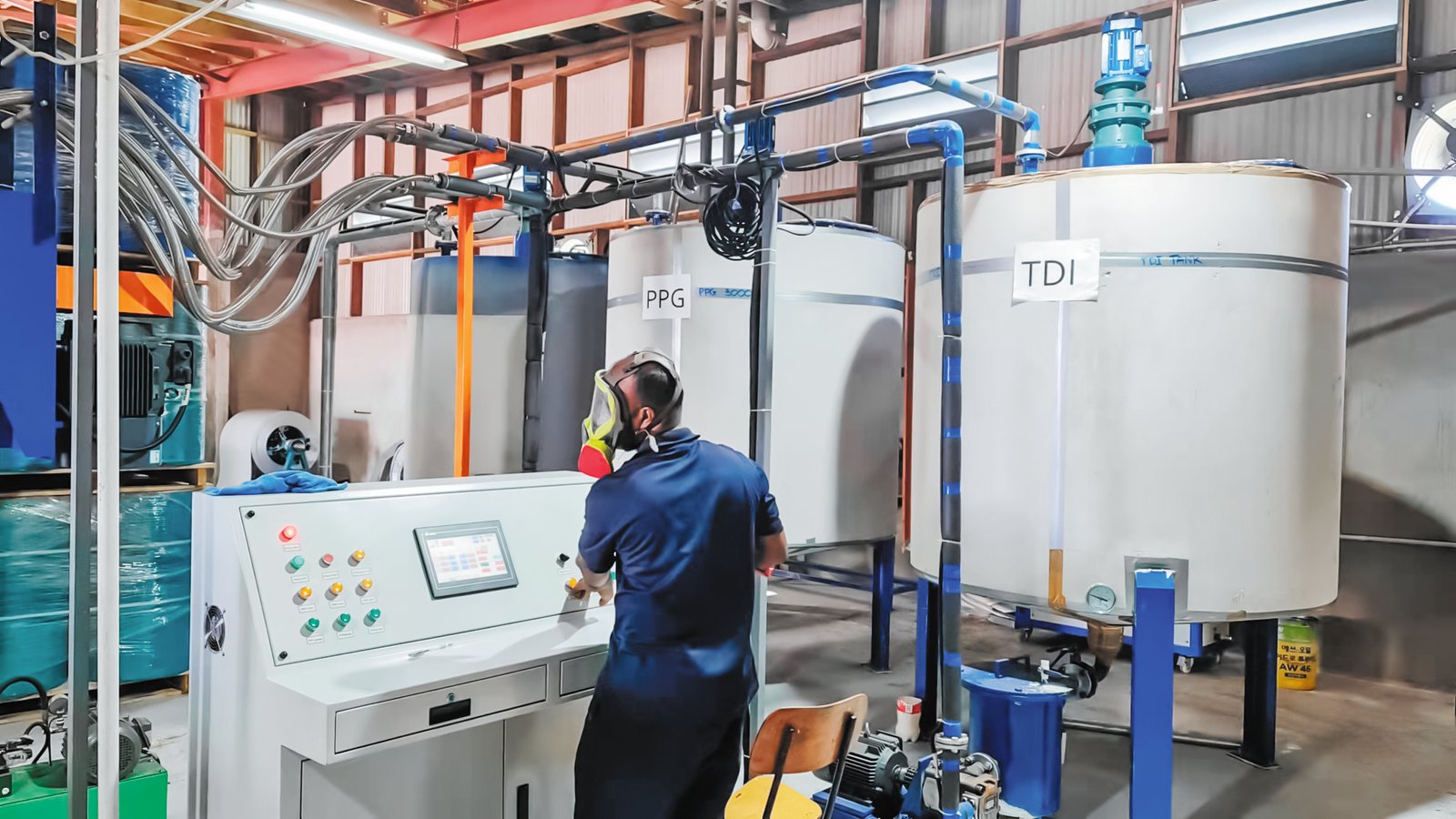

   These large containers store polyol blends and isocyanates. They often feature temperature controls to keep liquids at optimal consistency.
2. Pumps And Hoses:
   High-precision pumps push the chemicals through hoses into the mixing area. Meters track flow rates for consistency.
3. Mixing Head:
   Where the magic happens. This component merges the chemicals, producing a foamy mixture that travels to molds or onto a conveyor.
4. Controls And Monitors:
   Modern systems have digital interfaces for adjusting chemical ratios, temperatures, or flow speeds. Sensors and gauges track performance.

Info: Some foam making machines also incorporate vacuum systems to remove trapped air bubbles, ensuring a smoother, more uniform foam structure.

The Chemical Reaction Process

When the polyol blend meets the isocyanate, it undergoes a chemical reaction that generates carbon dioxide or another gas. This gas inflates tiny bubbles throughout the mixture, causing it to expand rapidly. The foam then hardens into a solid structure as the reaction continues. Depending on the formula, you might get flexible foam for cushions or rigid foam for insulation.

Foam Reaction Stages

• Mixing: Chemicals collide at high speed.
• Creaming: The blend starts thickening; bubbles form.
• Rising: Foam expands, increasing in volume.
• Gelation: The structure solidifies, locking bubbles in place.
• Curing: The foam finishes hardening, reaching final strength and shape.

Warnings: Uncontrolled or excessive heating during the reaction can degrade foam quality. Also, be mindful of chemical fumes, as inhalation can be hazardous.

Table: Types Of Foams Produced

Here’s a quick reference showing common foam types that might emerge from a foam making machine. Each type has unique properties and uses:

As you can see, minor tweaks in chemical formulas or processing conditions can yield drastically different foam characteristics. By mastering these variables, manufacturers tailor each product to specific performance needs.

Operational Steps For Foam Manufacturing

So, how do you actually run a foam making machine from start to finish? While exact steps vary by brand and model, the process usually goes something like this:

1. Calibration And Setup
   • Check chemical tanks for correct fluid levels.
   • Calibrate metering pumps to match the desired output.
   • Input the foam recipe into the machine’s control panel.
2. Preheat Chemicals
   • Ensure each fluid’s temperature matches the recommended specs.
   • Warm liquids flow more smoothly, promoting thorough mixing.
3. Initiate Mixing
   • Activate the mixing head or agitator.
   • Observe for any abnormal vibrations or pressure drops.
4. Dispense Foam
   • For continuous production, foam flows onto a conveyor, where it forms a long “bun.”
   • For molded items, the mixture fills individual molds to create seat cushions or specialized parts.
5. Curing
   • Let the foam expand and stabilize.
   • Depending on the recipe, final curing might take minutes to hours.
6. Quality Checks
   • Test foam density, rebound, or other mechanical properties.
   • Adjust machine settings if the product differs from the desired specification.

Suggestion: Keep a record of each production run, noting any changes in temperature or chemical ratios. This log helps troubleshoot variations and refine future batches.

Conclusion

So, how does a foam making machine work? Essentially, it merges two or more chemicals, carefully manages temperatures and flow rates, and then lets the resulting blend expand into foam. Each step—from pumping to mixing to curing—happens under controlled conditions, ensuring the final product meets specific density and durability targets.

When done right, foam production can supply everything from plush sofa cushions to sturdy insulation panels. And while the process demands attention to detail and safety, the payoff is a reliable method for creating an incredibly versatile material. Whether you’re exploring small-scale manufacturing or simply curious about the technology, understanding the basics can help you appreciate the artistry behind every foam product.

FAQs

1. Can I run different foam densities on the same machine?

Yes, but you may need to recalibrate pumps or adjust chemical ratios for each density. Follow manufacturer guidelines to avoid cross-contamination.

2. How do I prevent air bubbles in my foam?

Proper mixing and sometimes a vacuum system can reduce air entrapment. Also, ensure chemicals are at stable temperatures before mixing.

3. Is foam from a foam making machine environmentally friendly?

Some formulas include green-friendly ingredients. However, you must still handle disposal carefully, as leftover chemicals can be hazardous.
